Crusher

Crusher

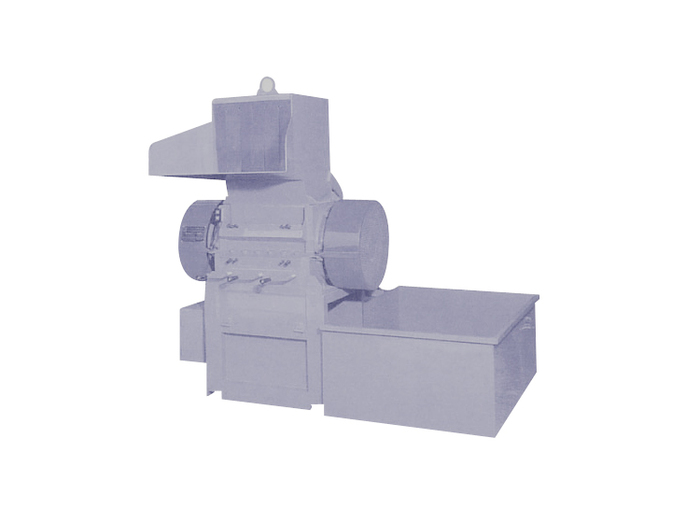

CR Series

In our design and arrangement, all plastic waste must be recycled through our plastic grinder (CR series) to pellet the waste into small pieces for the convenience of further transformation. These plastic wastes can be regenerated into plastic resin after the granulation treatment by the pellet device.
The CR series pellet/crusher follows these steps: First, the plastic chunks are cut into smaller sizes in a standardized procedure. Next, put the appropriate plastic waste into the recycling machine.

>
Type CR-10 CR-15 CR-20 CR-30
Motor hp 10 15 20 30
Into Size 315 x 185 400 x 240 436 x 274 530 x 300
Rotary Cutter pcs 3.6 3.6 3.6 3.6
Stationary Cutter pcs 4 4 4 4
Net Weight kgs 600 830 1130 1490
L x W x H 1500 x 800 x 1400 1600 x 960 x 1450 1700 x 1050 x 1800 1900 x 1160 x 1900
Capacity kgs 200 - 500 300 - 600 400 - 700 500 - 900
