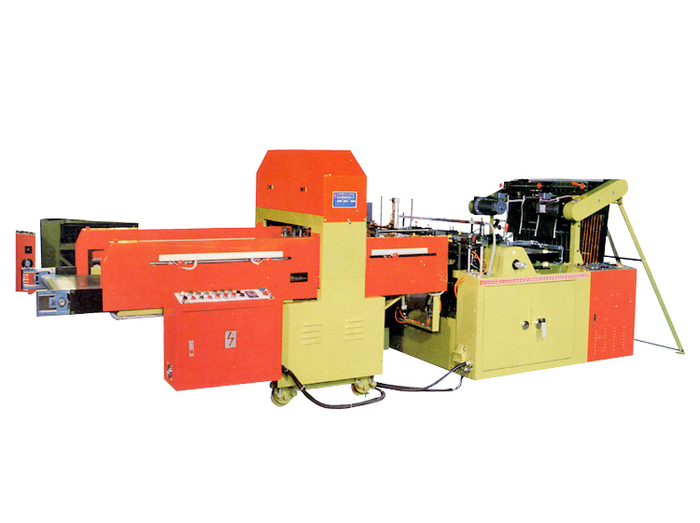

T-shirt Bag Automatic Making Machine (thermo Type)
| Model | FTAAB 28X30+P | FTAAB 32X30+P | FTAAB 40X30+P | |
|---|---|---|---|---|
| Max Cutting Width | 12"x2 | 14"x2 | 18"x2 | |
| Max Cutting Length | 30" | 30" | 30" | |
| Length Tolerance | mm | ±1 | ±1 | ±1 |
| Thickness | mm | 0.01-0.15 | 0.01-0.15 | 0.01-0.2 |
| Prod. Per. Min | pc | 40-120 | 40-120 | 30-100 |
| Driving Motor | AC | 2hp | 2hp | 2hp |
| Heater Capocity | kw | 2.5 | 3.0 | 3.7 |
| Power Required | kw | 3.8 | 4.2 | 5.3 |
| Dimehsion L x W x H | cm | 350 x 135 x 165 260 x 123 x 166 |
350 x 145 x 165 260 x 133 x 166 |
350 x 165 x 165 260 x 143 x 166 |
| Machine Weight | kg | 900+600 | 1100+700 | 1300+800 |
| Measurement L x W x H | cm | 225 x 145 x 170 270 x 133 x 176 |
225 x 155 x 170 270 x 143 x 176 |
225 x 175 x 170 270 x 153 x 176 |
| Gross Weight | kg | 1200+800 | 1400+900 | 1600+1000 |
