2 Color Flexographic Printing Machine
2 Color Flexographic Printing Machine
CH-2001

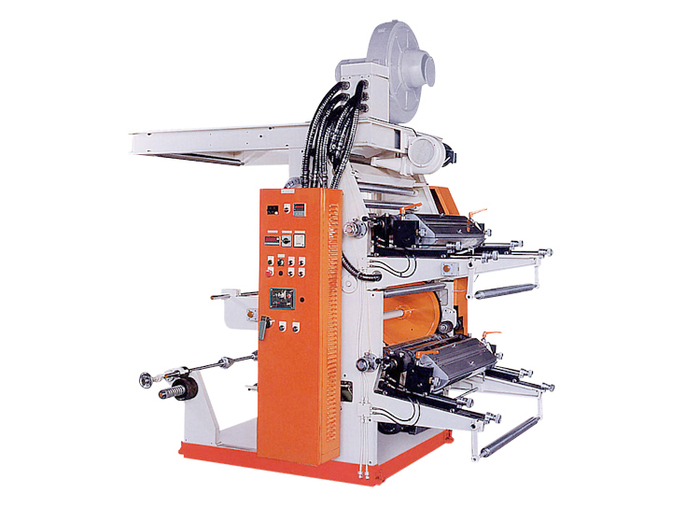

The CH-2001 2 color flexographic printing machine, manufactured by Cherng Horng, is one of the company's most advanced plastic machinery and has many useful features to help users achieve optimum productivity.
The machine prints two colors, with a maximum print speed of 60 meters per minute. The machine is available in three models: 500, 800 and 1000 with a maximum film pass width of 600 mm, 900 mm and 1100 mm.
Print lengths range from 200mm to 1000mm, printability is 0+2, 1+1. The main motors are 2 hp, 3 hp and 3 hp, and the heater power is 1.5 x 7, 1.5 x 10 and 1.5 x 13.
| Printing Width | mm | 500 | 800 | 1000 |
|---|---|---|---|---|
| Color Printed | 2 | 2 | 2 | |
| Printng Speed (max.) | m/min | 60 | 60 | 60 |
| Film Passing Width (max.) | mm | 600 | 900 | 1100 |
| Printing Length | mm | 200-1000 | 200-1000 | 200-1000 |
| Printing Possibility | mm | 0 + 2 , 1 + 1 | 0 + 2 , 1 + 1 | 0 + 2 , 1 + 1 |
| Main Motor | hp | 2 | 3 | 3 |
| Heater | kw/pcs | 1.5 X 7 | 1.5 X 10 | 1.5 X 13 |
| Blower for Heater | hp | 1/2hp x 1, 2hp | 1/2hp x 1, 5hp | 1/2hp x 1, 5hp |
| Hydraulic Pump Motor | hp | 1 | 1 | 1 |
| Ink Roll Motor | hp | 1/2 | 1/2 | 1/2 |
| Torque Motor | kg | 30 x 1 | 30 x 1 | 50 x 1 |
| Total Power | kw | 13 | 16 | 18 |
