2 Colors Flexographic In-line Printing Machine
2 Colors Flexographic In-line Printing Machine
CH-2004

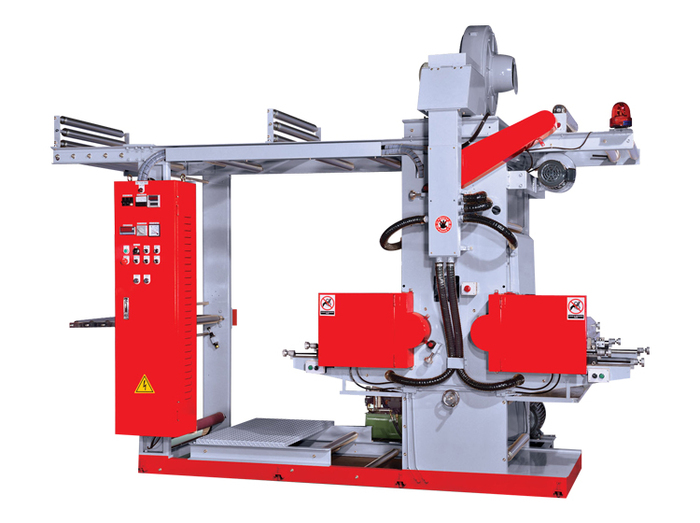

The CH-2004 two-color flexographic in-line printing machine is available in three models: 500, 800 and 1000.
The machine has excellent operational flexibility, printing speed is 90 meters per minute, the maximum film passing width is 600mm, 900mm and 1100mm, the printing length ranges from 200mm to 1000mm, and the printing possibility is 0+2,1+1.
The main models of the three models are 5 horsepower, 7 1/2 horsepower and 10 horsepower. The heater's power capacity is 1.5 x 6, 1.5 x 6 and 1.5 x 10 kW per unit, so users of more demand can choose the 1000 model.
| Printing Width | mm | 500 | 800 | 1000 |
|---|---|---|---|---|
| Color Printed | 2 | 2 | 2 | |
| Printng Speed (max.) | m/min | 90 | 90 | 90 |
| Film Passing Width (max.) | mm | 600 | 900 | 1100 |
| Printing Length | mm | 200-1000 | 200-1000 | 200-1000 |
| Printing Possibility | mm | 0 + 2 , 1 + 1 | 0 + 2 , 1 + 1 | 0 + 2 , 1 + 1 |
| Main Motor | hp | 5 | 7 1/2 | 10 |
| Heater | kw/pcs | 1.5 x 6 | 1.5 x 6 | 1.5 x 10 |
| Blower for Heater | hp | 1/2hp x 1, 5hp x 1 | 1/2hp x 1, 5hp x 1 | 1/2hp x 1, 5hp x 1 |
| Hydraulic Pump Motor | hp | 1 | 1 | 1 |
| Total Power | kw | 10 | 11 | 12 |
