4 Colors Flexographic In-line Printing Machine
4 Colors Flexographic In-line Printing Machine
CH-4004

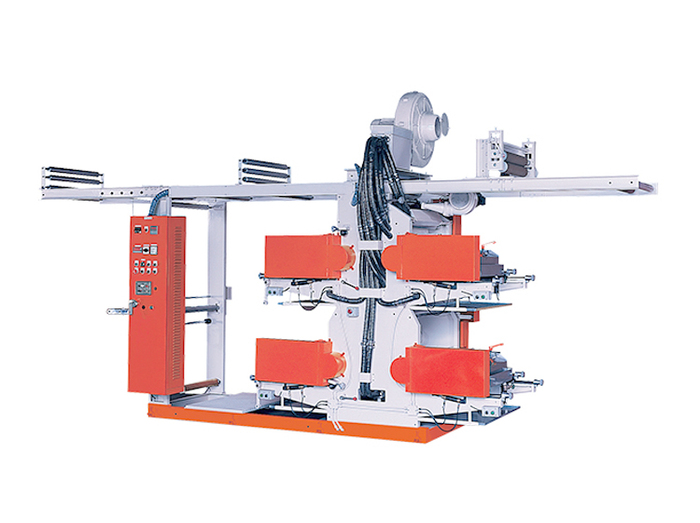

The CH-4004 four-color flexographic in-line printing machine is available in three models: Model 500, 800 and 1000.
TThe maximum printing speed of the CH-4004 is 90 meters per minute. The printing length ranges from 200 mm to 1000 mm.
As an advanced model in the machine inventory, the model has four printing colors. There is a great combination of possibilities for printing: 0+4, 1+3, or 2+2. Users with more demand may choose Model 1000 for operation.
| Printing Width | mm | 500 | 800 | 1000 |
|---|---|---|---|---|
| Color Printed | 4 | 4 | 4 | |
| Printng Speed (max.) | m/min | 90 | 90 | 90 |
| Film Passing Width (max.) | mm | 600 | 900 | 1100 |
| Printing Length | mm | 200-1000 | 200-1000 | 200-1000 |
| Printing Possibility | mm | 0+4, 1+3, 2+2 | 0+4, 1+3, 2+2 | 0+4, 1+3, 2+2 |
| Main Motor | hp | 7 1/2 | 7 1/2 | 10 |
| Heater | kw/pcs | 1.5 x 13 | 1.5 x 16 | 1.5 x 19 |
| Blower for Heater | hp | 1/2hp x 1, 5hp x 1 | 1/2hp x 1, 5hp x 1 | 1/2hp x 1, 5hp x 1 |
| Hydraulic Pump Motor | hp | 1 | 1 | 1 |
| Ink Roll Motor | hp | No Need | No Need | No Need |
| Total Power | kw | 25 | 30 | 35 |
