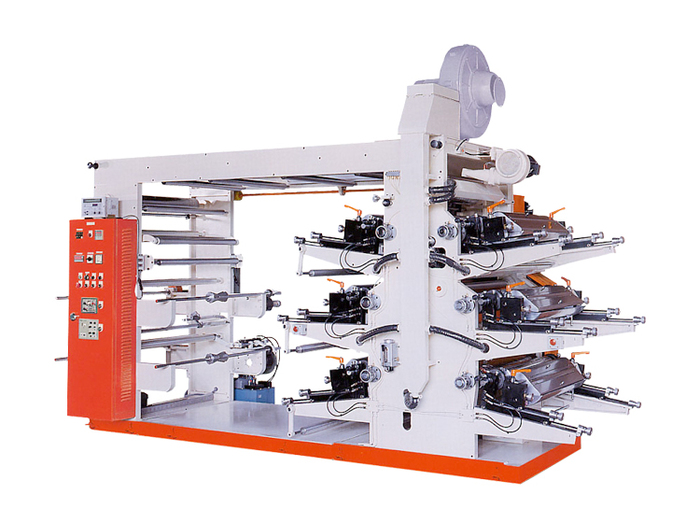

6 Color Flexographic Printing Machine
6 Color Flexographic Printing Machine
CH-6001
| Printing Width | mm | 500 | 800 | 1000 |
|---|---|---|---|---|
| Color Printed | 6 | 6 | 6 | |
| Printng Speed (max.) | m/min | 60 | 60 | 60 |
| Film Passing Width (max.) | mm | 600 | 900 | 1100 |
| Printing Length | mm | 200-800 | 200-800 | 200-800 |
| Printing Possibility | mm | 0+6, 1+5, 2+4, 3+3 | 0+6, 1+5, 2+4, 3+3 | 0+6, 1+5, 2+4, 3+3 |
| Main Motor | hp | 5 | 7 1/2 | 7 1/2 |
| Heater | kw/pcs | 1.5 x 13 | 1.5 x 16 | 1.5 x 19 |
| Blower for Heater | hp | 1/2hp x 1, 5hp x 1 | 1/2hp x 1, 5hp x 1 | 1/2hp x 1, 7 1/2hp x 1 |
| Hydraulic Pump Motor | hp | 1 | 1 | 1 |
| Ink Roll Motor | hp | 1/2 | 1/2 | 1/2 |
| Torque Motor | kg | 30 x 2 | 30 x 2 | 50 x 2 |
| Total Power | kw | 22 | 25 | 28 |
