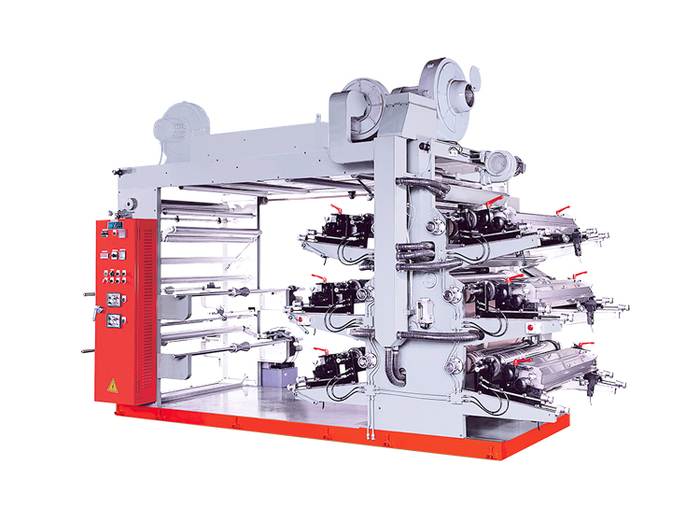

6 Color Flexographic High Speed Printing Machine

6 Color Flexographic High Speed Printing Machine
CH-HS6001 - Hi-Speed
Video
Printing Width mm 500 800 1000
Color Printed 6 6 6
Printng Speed (max.) m/min 85 85 85
EPC 1 1 1
Film Passing Width (max.) mm 600 900 1100
Printing Length mm 200-800 200-800 200-800
Printing Possibility mm 0+6, 1+5, 2+4, 3+3 0+6, 1+5, 2+4, 3+3 0+6, 1+5, 2+4, 3+3
Main Motor hp 5 7 1/2 7 1/2
Heater kw/pcs 1.5 x 16 1.5 x 19 1.5 x 22
Blower for Heater hp 1/2hp x 1.2hp x 2.5hp x 1 1/2hp x 1.2hp x 2.5hp x 1 1/2hp x 1.7 1/2hp x 1.2hp x 2
Hydraulic Pump Motor hp 1 1 1
Ink Roll Motor hp 1/2 1/2 1/2
Torque Motor kg 30 x 2 30 x 2 50 x 2
Total Power kw 25 28 30
