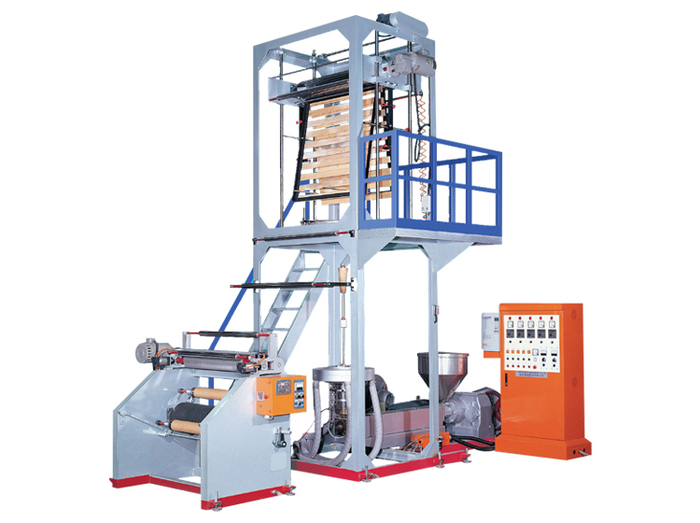

HDPE Plastic Film Extruding Machine
| Model | HPE Series | ||||||
|---|---|---|---|---|---|---|---|
| HPE-35S | HPE-45S | HPE-50S | HPE-55S | HPE-65S | HPE-75S | ||
| Raw Material | HDPE | ||||||
| Film Thickness | mm | 0.008-0.2 | 0.008-0.2 | 0.008-0.2 | 0.008-0.2 | 0.008-0.2 | 0.008-0.2 |
| Film Width | mm | 150-550 | 200-700 | 200-750 | 250-950 | 300-1150 | 400-1450 |
| Extruding Output | kg/hr | 10-30 | 15-50 | 20-65 | 20-75 | 25-90 | 30-110 |
| Whole Power Required | kw | 25 | 28 | 40 | 42 | 55 | 70 |
| Overall Dimension | cm | 400 x 180 x 360 | 420 x 200 x 400 | 450 x 210 x 400 | 470 x 220 x 420 | 480 x 240 x 450 | 500 x 260 x 470 |
| Net Weight | kg | 3000 | 3500 | 4000 | 4500 | 5200 | 6000 |
| Extruder | Low Base Type | ||||||
| Screw Diameter | mm | 35 | 45 | 50 | 55 | 65 | 75 |
| Screw Ratio | l/d | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Driving V.S. Motor | hp | 20 | 25 | 30 | 40 | 50 | 75 |
| Heating Power | kw | 6 | 8.5 | 10 | 11 | 13 | 18 |
| Screw Speed | rpm | 0-160 | 0-140 | 0-140 | 0-140 | 0-120 | 0-120 |
| Cooling Blower | Ø2" x 1pc | Ø3" x 2pcs | Ø3" x 2pc | Ø3" x 2pc | Ø3" x 2pc | Ø3" x 2pcs | |
| Temp. Controller | zone | 4 | 5 | 5 | 5 | 6 | 7 |
| Die | Spiral Type | ||||||
| Die Diameter | mm | 40 & 65 | 65 & 85 | 65 & 90 | 90 & 120 | 100 & 150 | 150 & 200 |
| Heating Power | kw | 2.5 or 3.5 | 3 or 3.5 | 3 or 4.2 | 3 or 4.2 | 3.3 or 6 | 3.5 or 8 |
| Blower | hp | 3 | 5 | 5 | 5 | 5 | 7 1/2 |
| Air Ring | set | 1 | 1 | 1 | 1 | 1 | 1 |
| Take-Up Unit | Motor Type | ||||||
| Take-Up D.C. Motor | hp | 1 | 1 | 1 | 1 | 1 | 1 |
| Take-Up Roller Width | mm | 600 | 750 | 800 | 1000 | 1200 | 1500 |
| Takep-Up Height | mm | 3600 | 4000 | 4200 | 4200 | 4600 | 5000 |
| Take-Up Speed | rpm | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 | 10-120 |
| Winder | Surface Type / One or Two Station (Optional) | ||||||
| Winding Roller | pc | 1pc or 2pcs (Optional) | 1pc or 2pcs (Optional) | 1pc or 2pcs (Optional) | 1pc or 2pcs (Optional) | 1pc or 2pcs (Optional) | 1pc or 2pcs (Optional) |
| Torque Motor | kg/cm | 20x1 or 2pcs | 20x1 or 2pcs | 20x1 or 2pcs | 20x1 or 2pcs | 30x1 or 2pcs | 40x1 or 2pcs |
| Winding Width (max.) | 670 | 820 | 870 | 1070 | 1270 | 1570 | |
| Paper Core I.D. | mm | 75 | 75 | 75 | 75 | 75 | 75 |
| Paper Code O.D. | mm | 96 | 95 | 96 | 95 | 95 | 95 |
