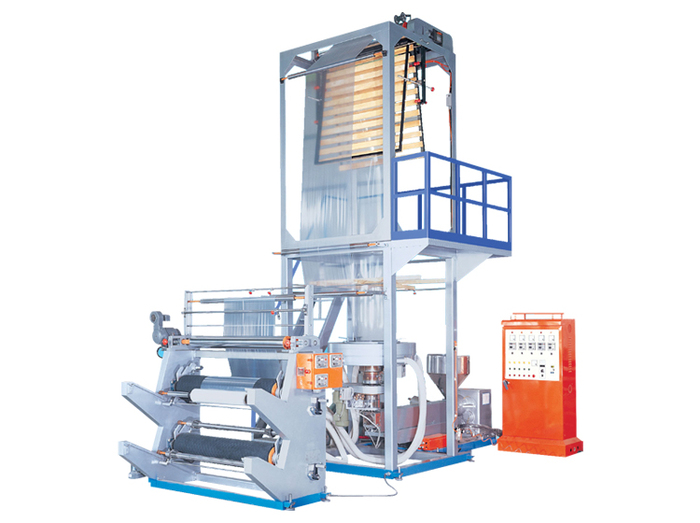

LDPE Plastic Film Extruding Machine
LPE Series
Video
Model LPE Series
LPE-35S LPE-45S LPE-50S LPE-55S LPE-65S LPE-75S
Raw Material HDPE
Film Thickness mm 0.025-0.2 0.025-0.2 0.025-0.2 0.025-0.2 0.025-0.2 0.025-0.2
Film Width mm 70-550 150-700 200-750 250-950 300-1150 450-1450
Extruding Output kg/hr 10-30 15-60 15-75 20-90 25-120 30-140
Whole Power Required kw 28 42 45 48 60 80
Overall Dimension cm 400 x 180 x 360 420 x 200 x 400 450 x 210 x 450 470 x 220 x 500 480 x 240 x 500 500 x 260 x 550
Net Weight kg 2500 2800 3000 3200 4000 5000
Extruder Low Base Type
Screw Diameter mm 35 45 50 55 65 75
Screw Ratio l/d 30:1 30:1 30:1 30:1 30:1 30:1
Driving V.S. Motor hp 20 25 30 40 50 75
Heating Power kw 7 8.5 10 12 14 18
Screw Speed rpm 0-140 0-140 0-140 0-140 0-120 0-120
Cooling Blower Ø2 1/2" x 1pc Ø2 1/2" x 2pcs Ø3" x 2pcs Ø3" x 2pcs Ø3" x 3pcs Ø3" x 3pcs
Temp. Controller zone 4 5 5 6 7 7
Die Spiral Type
Die Diameter mm 80 & 120 100 & 180 100 & 200 120 & 250 150 & 300 200 & 350
Heating Power kw 2.5 or 3.5 3 or 4 3 or 4 3 or 4.2 3.5 or 5 3.5 or 6
Blower hp 3 3 5 5 5 7 1/2
Air Ring set 1 1 1 1 1 1
Take-Up Unit Motor Type
Take-Up D.C. Motor hp 1/2 1/2 1 1 1 2
Take-Up Roller Width mm 600 750 800 1000 1200 1500
Takep-Up Height mm 3600 4000 4500 4800 5000 5500
Take-Up Speed rpm 10-100 10-100 10-100 10-100 10-100 10-100
Winder Surface Type / One or Two Station (Optional)
Winding Roller pc 1pc or 2pcs (Optional) 1pc or 2pcs (Optional) 1pc or 2pcs (Optional) 1pc or 2pcs (Optional) 1pc or 2pcs (Optional) 1pc or 2pcs (Optional)
Torque Motor kg/cm 20x1 or 2pcs 20x1 or 2pcs 20x1 or 2pcs 20x1 or 2pcs 30x1 or 2pcs 40x1 or 2pcs
Winding Width (max.)   670 820 870 1070 1270 1570
Paper Core I.D. mm 70 70 70 70 70 70
Paper Code O.D. mm 96 95 96 95 95 95
